Pmod RS232

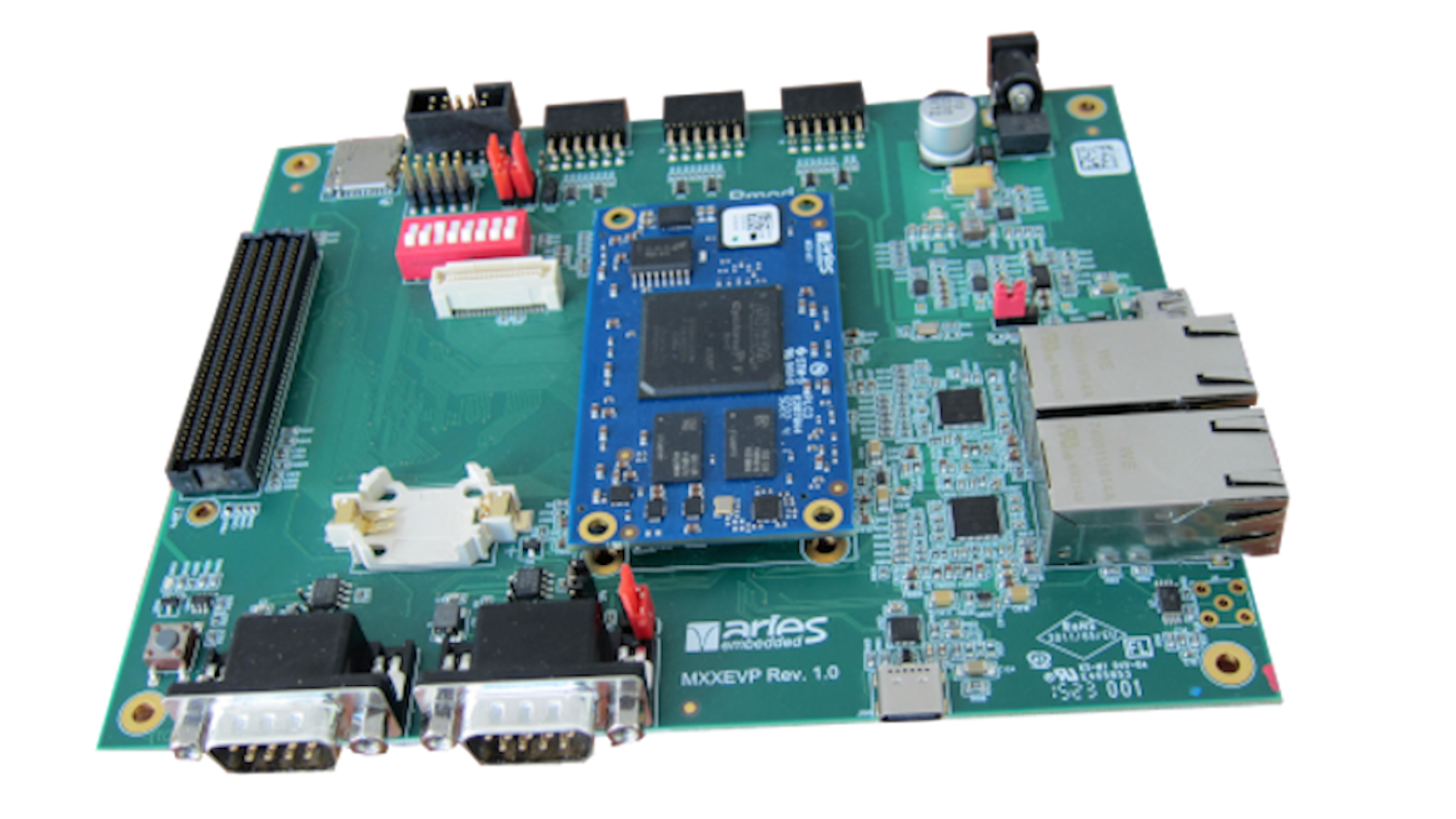

MCVEVP baseboard:- 2x Gigabit Ethernet,- 2x RS232,- 2x CAN,- USB,- HSMC connector,- 3x PMOD connector Power Supply TFT/Touch (optional) System on module:   MCV-2DB MCV-X2DB MCV-6DB MCV-X6DB Altera SoC FPGA 5CSEBA2U23C8N 5CSXFC2C6U23C7N 5CSEBA6U23C7N 5CSXFC6C6U23C7N Dual Cortex A9 600 MHz 800 MHz 800 MHz 800 MHz PCIe   √   √ e.MMC Flash 4 GB 4 GB 4 GB 4 GB DDR3 SDRAM 1 GB 1 GB 1 GB 1 GB FPGA Logic Elements (LE) 25K 25K 110K 110K Temperature range 0°C...+70°C 0°C...+70°C 0°C...+70°C  0°C...+70°C Size 42 x74 mm 42 x74 mm 42 x74 mm 42 x74 mm Connectors 360 pins on 2xQSH connectors

M100PFEVP – PolarFire FPGA Evaluation PlatformEvaluation and Reference Platform for the M100PF SoM The M100PFEVP supports a quick start-up of FPGA projects and can easily be used as a fast-prototype platform. M100PF offers the full flexibility of the PolarFire FPGA family. PolarFire cost-optimized FPGAs deliver the lowest power at mid-range densities with 12.7 Gbps SerDes transceivers as well as best-in-class security and reliability. They offer unprecedented capabilities and value with 10G transceivers, advanced I/Os, security and DSP capabilities while maintaining all the advantages traditionally associated with non-volatile FPGAs such as static power, security and single event upset (SEU) immunity. The devices are ideal for a wide range of applications within wireline access networks and cellular infrastructure, defense and commercial aviation markets, as well as industrial automation and IoT Markets. Features 2x Gigabit Ethernet USB 2x UART 2x CAN TFT connector HSMC extension connector 3x PMOD extension connectors microSD-card slotPolarFire FPGAs have now been adopted by dozens of customers in key communications, defense and industrial infrastructure market segments. These systems have a substantially lower cost of ownership, as the PolarFire family enables significantly lower power consumption and an ability to operate in harsher thermal environments.

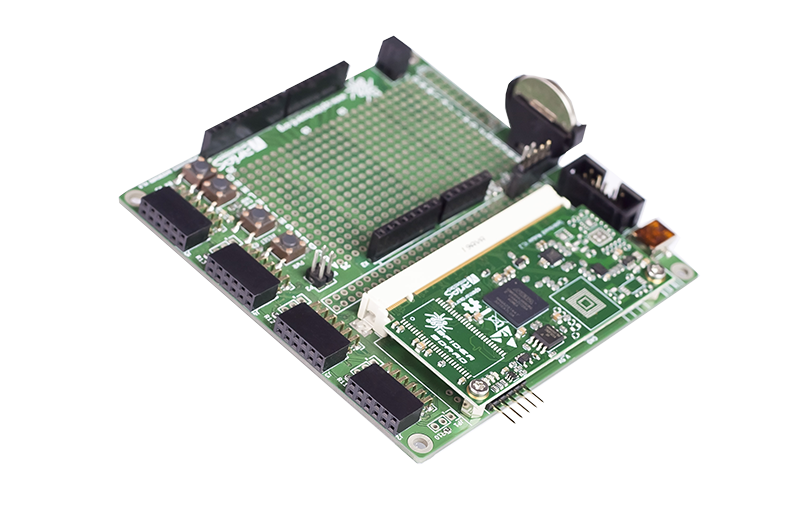

 The Spiderboard Baseboard is a unique baseboard, designed to host the Spiderboard SoM / MX10 SoM based on Intel PSG (former Altera®) MAX® 10 FPGAs.  Features: simple baseboard in 2 layer design compatibility to the Spiderboard SoM as well as the MX10 SoM. open hardware MxM2 pcb edge connector every pin of the MxM2 connector module is accessible at one of the pinheaders large 25x15 .1” prototyping area 4 PMOD compatible headers (3.3V or 5V supply voltage selectable) 2 user push buttons reset and power buttons 2 user LEDs Arduino shield compatible interface Intel PSG Blaster compatible programming interfaces USB mini B connector CR2032 cell holder JST-2.0 lithium battery connector configuration jumpers (e.g. boot selection for MX10 module) MX10 SoM / SpiderSoM configurations:   MX10-L MX10-S8 MX10-S16 MX10-U SoM-L SoM-S FPGA 10M04DC   F256 10M08DA  F256 10M16DA  F256 10M50DA F256 10M02SC MAX10 10M08SA MAX10 ADC - 1 1 2 - 1 Clock 25 MHz XO 25 MHz XO 25 MHz XO, PLL IDT5P49V5923 25 MHz XO, PLL IDT5P49V5923 25 MHz XO 25 MHz XO DDR3 RAM - - 128 MB 512 MB - - SPI NOR - - - 4 MB - 4MiB e.MMC NAND Flash - - 4 GB 4 GB - - RTC - - - MPC794xx - - GPIO/ LVDS TX/Rx 100/ 13/ 16 100/ 13/ 16 100/ 13/ 16 100/ 13/ 16 130/ 13/ 16 130/ 13/ 16 Li-Ion charger LTC 4155 - - LTC 4155 - - I/O Voltage programmable 1.8V/ 2.5V/ 3.0V/ 3.3V 3.3V 3.3V Temperature range 0oC ... +70oC 0oC ... +70oC 0oC ... +70oC 0oC ... +70oC 0oC ... +70oC 0oC ... +70oC Size 70mm x 35mm 70mm x 35mm 70mm x 35mm 70mm x 35mm 70mm x 35mm 70mm x 35mm

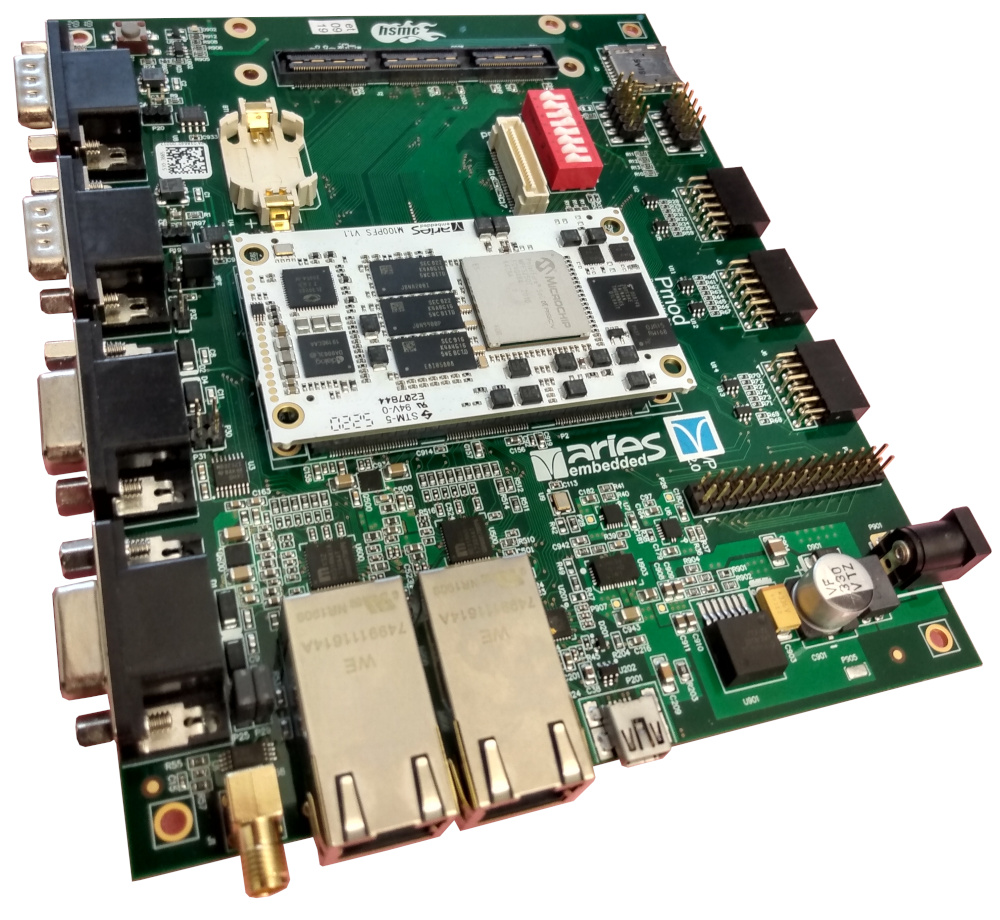

The M100PFEVPS supports a quick start-up of your SoC-FPGA project and can easily be used as a fast-prototype platform. Explore the new five core RISC-V architecture and integrate it into your product. Order Codes M100PFSEVP-250BAAB M100PFS-250BAAB MPFS250T PolarFire SoC FPGA 2GB DDR4 SDRAM dedicated to the HMS 512MB DDR4 SDRAM dedicated to the FPGA 32 MB SPI NOR Flash 4 GByte eMMC 0°C...+70°C 2x Gigabit Ethernet USB 2x UART 2x CAN TFT connector HSMC extension connector 3x PMOD extension connectors microSD-card slot Contact ARIES Embedded for Special Features and early Access
