CPU

M28-7BA1CI

i.MX287, up to 454MHz 128MB DDR2 RAM 256MB NAND Flash temp.range -40°C...+85°C

€79.00*

MA5D4-20A0A051E

SAMA5D42 CPU, up to 528MHz 128MB DDR2 RAM 4GB eMMC NAND Flash temp. range -25°C...+85°C

€69.00*

MA5D4-4BA0A051E

SAMA5D44 CPU, up to 528MHz 128MB DDR2 RAM 4MB SPI NOR 4GB eMMC NAND Flash temp. range -25°C...+85°C

€78.00*

MRZG2LS-AAB

CPU- Renesas RZ/G2L R9A07G044L23GBG#BC0- Dual Cortex-A55, up to 1.2GHz - Single Cortex-M33, up to 200 MHz - 3D Graphics engine (Arm Mali-G31) - Video Codec (H.264) Memory- 1GB DDR4 RAM - 128MBit SPI NOR - 4GB eMMC NAND Flash Connectivity- dual 10/100/1000MBit Ethernet with PHY - USB2.0 Host/OTG - 2x CAN - UART - I2C- SPI - ADC Camera/Display support- Camera interface MIPI-CSI - Display interface MIPI-DSI compliant to the SGET SMARC 2.1 standard commercial temperature range (0°C...+70°C)

€96.00*

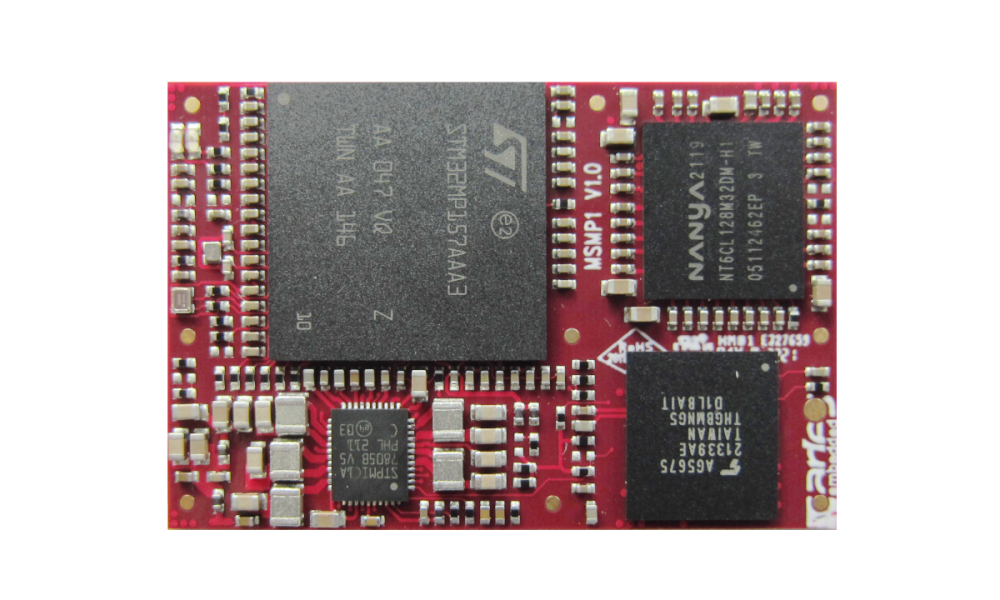

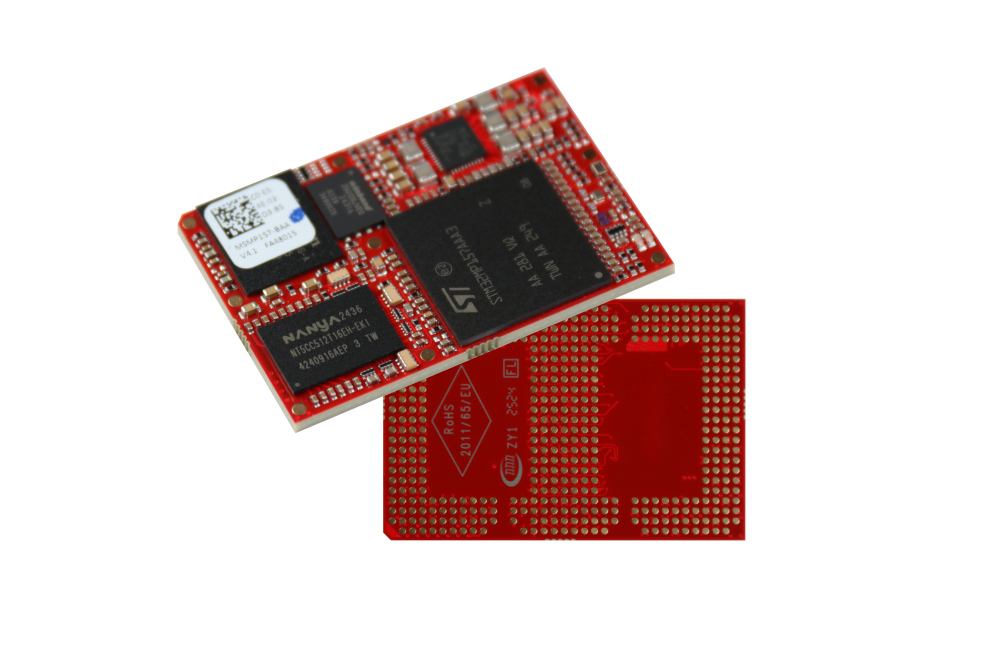

MSMP151-A0C

STM32MP151AAA3512MB LPDDR3 RAMno eMMC NAND Flash512MBit SPI NOR-25°C...+85°C

€42.00*

MSMP157-BAA

STM32MP157AAA3, Cortex-A7, up to 800MHz Cortex-M4, up to 209MHz1GByte LPDDR3 RAM4GB eMMC NAND Flash128MBit SPI NOR Flash 10/100/1000MBit Ethernet USB2.0 HostUSB2.0 OTG 2x CAN UARTI2CSPI ADCDAC Parallel display port Camera interface compliant to the SGET OSM standard sizeM, 30x45mm 476 contacts -30°C..+85°C industrial temperature

€58.00*

MSRZFive-A0A

Single core RISC-V, up to 1GHz 512MB DDR4 RAM 128MBit SPI NOR Flash dual 10/100/1000MBit Ethernet USB2.0 Host/OTG 2x CAN UART, I2C, SPI ADC compliant to the SGET OSM standard size S, 30x30mm², pin count: 332 0°C..+70°C commercial temperature range -40°C..+85°C industrial temperature range

€46.00*

MSRZG2UL-A0A

Renesas RZ/G2UL R9A07G043U11GBG, Single Cortex-A55, up to 1GHz Cortex-M33, up to 200MHz 512MB DDR4 RAM128MBit SPI NOR Flash no NAND Flash dual 10/100/1000MBit Ethernet USB2.0 Host/OTG 2x CAN UART, I2C, SPI ADC parallel display interface MIPI-CSI camera interface compliant to the SGET OSM standard size S, 30x30mm² pin count: 332 0°C..+70°C commercial temperature range -40°C..+85°C industrial temperature range

€54.00*

MSRZG2UL-BAA

Renesas RZ/G2UL R9A07G043U11GBG, Single Cortex-A55, up to 1GHz Cortex-M33, up to 200MHz1GB DDR4 RAM 4GB eMMC Flash 128MBit SPI-NOR Flash -25°...+85°C

€59.00*

QS8M-MQ00

QS8M System on Module Processor NXP i.MX8M Mini Quad 1,6GHz 1GB DDR3L RAM 4 GB eMMC Displayy-IF MIPI Dimensions 27mm x 27mm x 2.3mm -25°C...+85°C

€106.00*

QS8M-ND00

QS8M System on Module Processor NXP i.MX8M Nano Quad 1,4GHz 512 MB DDR3L RAM 4 GB eMMC Displayy-IF MIPI Dimensions 27mm x 27mm x 2.3mm -25°C...+85°C

€77.00*

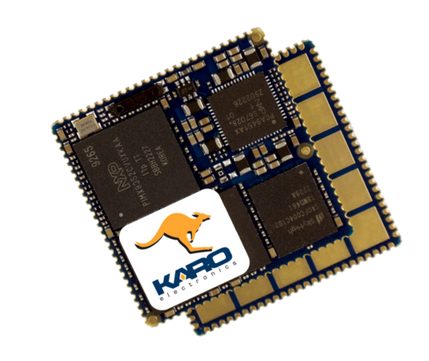

QS93-5210

SMP System on Module Processor MIMX9352C 1GB LPDDDR3 RAM 4GB eMMC NAND Flash -40°C...+85°C

€84.00*

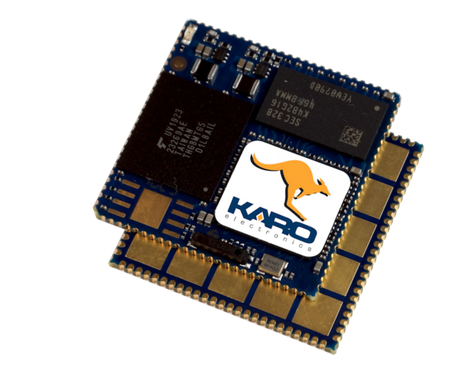

QSMP-1510

QSMP System on Module Processor STM32MP151A 256 MB LPDDDR3 RAM 128 MB SLC NAND Flash Displayy-IF 24-bit RGB Dimensions 27mm x 27mm x 2.3mm -40°C...+85°C

€33.00*

QSMP-1530

QSMP System on Module Processor STM32MP153A 256 MB LPDDDR3 RAM 4GB eMMC NAND Flash Displayy-IF 24-bit RGB Dimensions 27mm x 27mm x 2.3mm -40°C...+85°C

€41.00*

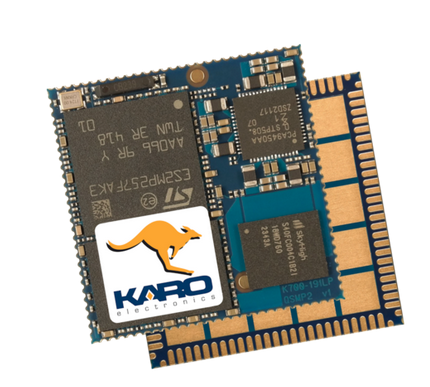

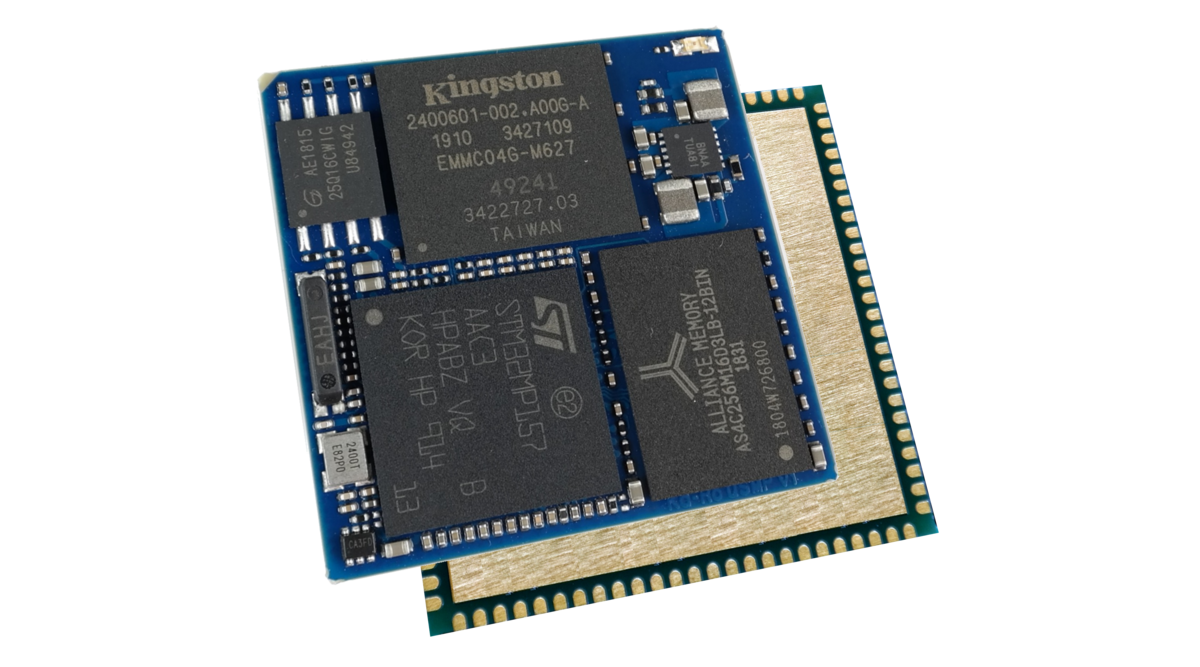

QSMP-1570

QSMP System on Module Processor STM32MP157C 512 MB LPDDR3 RAM 4GB eMMC Displayy-IF 24-bit RGB + 2-lane MIPI-DSI Dimensions 27mm x 27mm x 2.3mm -25°C...+85°C

€62.00*

QSRZ-G2L0

QSRZ System on Module: 1GB DDR3L RAM 4GB eMMC NAND Flash -40 °C .. 85 °C

€84.00*

QSRZ-G2L1

QSRZ System on Module: 512 MBDDR3L RAM 4GB eMMC NAND Flash -40 °C .. 85 °C

€69.00*

QSXM-MM60

QSXM System on Module NXP i.MX 8M Mini 1,6GHz 2 GB LPDDR4 RAM 4 GB eMMC Display-IF MIPI Dimensions 29mm x 29mm x 2.6mm -25°C...+85°C

€108.00*

QSXP-ML81

QSXP System on Module Processor NXP i.MX 8M Plus 1,6GHz 2 GB LPDDR4 RAM 8 GB eMMC Display-IF MIPI Dimensions 29mm x 29mm x 2.6mm -30°C...+85°C

€134.00*

TX6Q-1030

TX6Q System on Module i.MX6 Quad, 1GHz 1GB DDR3 SDRAM 128MB NAND Flash -20°C...+70°C

€131.00*

TX6Q-1036

TX6Q System on Module i.MX6 Quad, 1GHz 1GB DDR3 SDRAM 8GB eMMC NAND Flash -20°C...+70°C

€141.00*

TX6S-8034

TX6S System on Module i.MX6 Solo, 800MHz 256MB DDR3 SDRAM 128MB NAND Flash -40°C...+85°C

€66.00*

TX6S-8035

TX6S System on Module i.MX6 Solo, 800MHz 512MB DDR3 SDRAM 4GB eMMC NAND Flash -25°C...+85°C

€70.00*

TX6S-8134

TX6S System on Module i.MX6 Solo, 800MHz 256MB DDR3 SDRAM 128MB NAND Flash Display IF LCDS -40°C...+85°C

€67.00*
