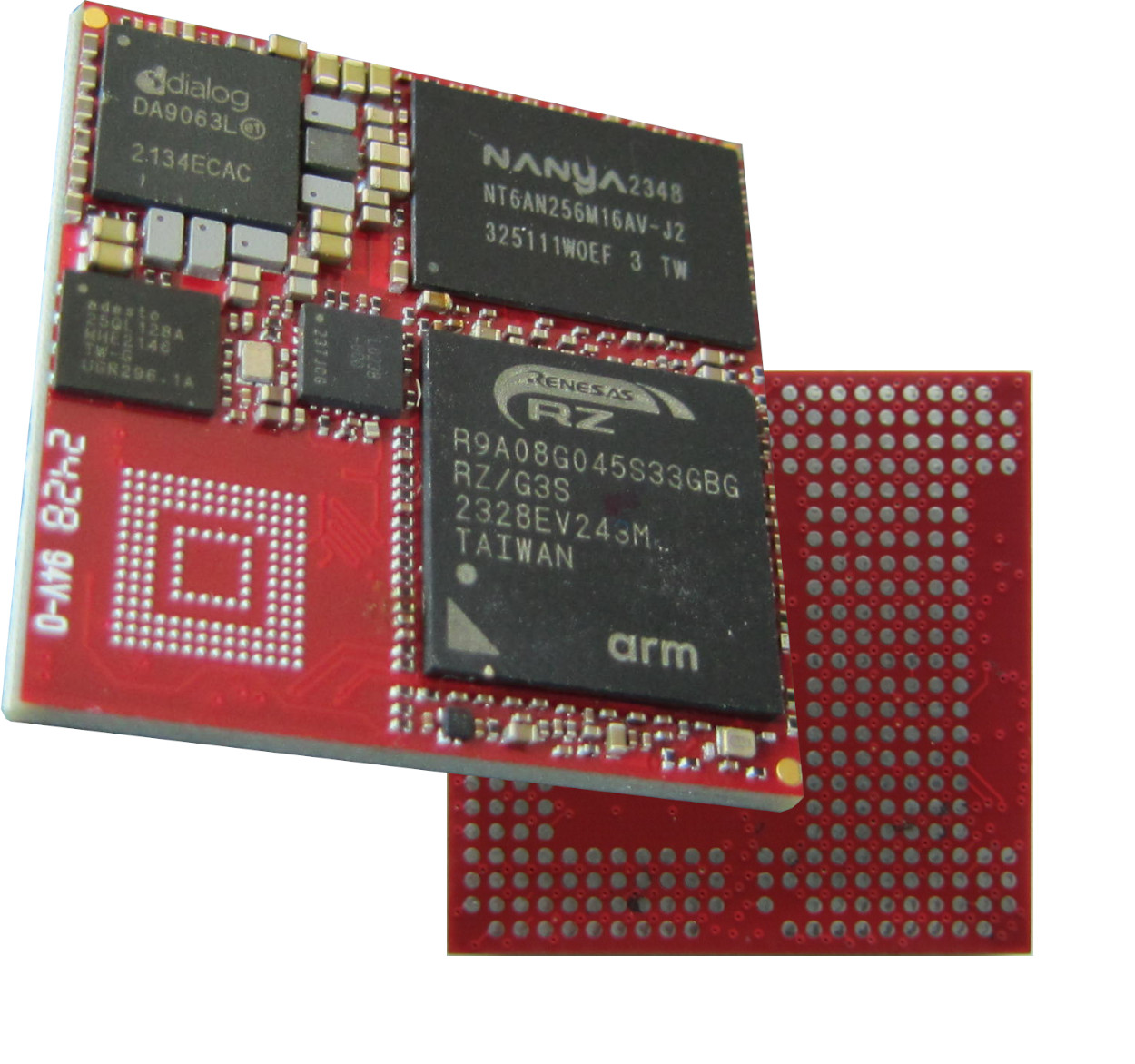

MSRZG3S-A0A
€56.00
Product information "MSRZG3S-A0A"
- Renesas RZ/G3S CPU
R9A08G045S33GBG
- Dual Cortex-M33, up to 250MHz
- 512MB LPDDR4 SDRAM
- no eMMC NAND Flash
- 128MBit SPI NOR Flash
- temperature range -25°C..+85°C
