MSMP157-BAA

€58.00*

Prices excl. VAT plus shipping costs

Available, delivery time: 1-3 days

Product number: MSMP157-BAA

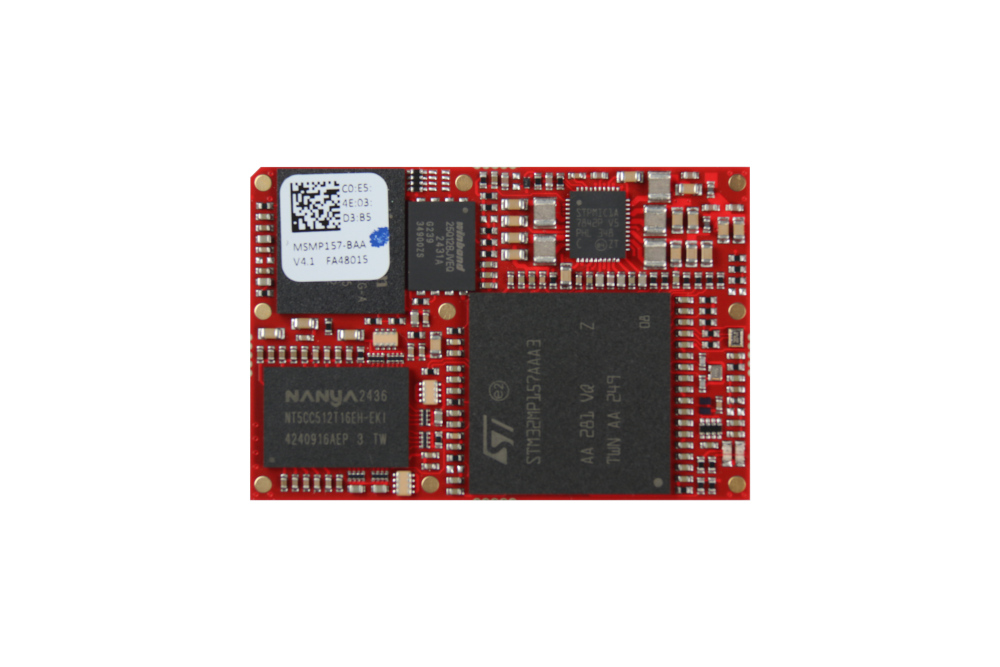

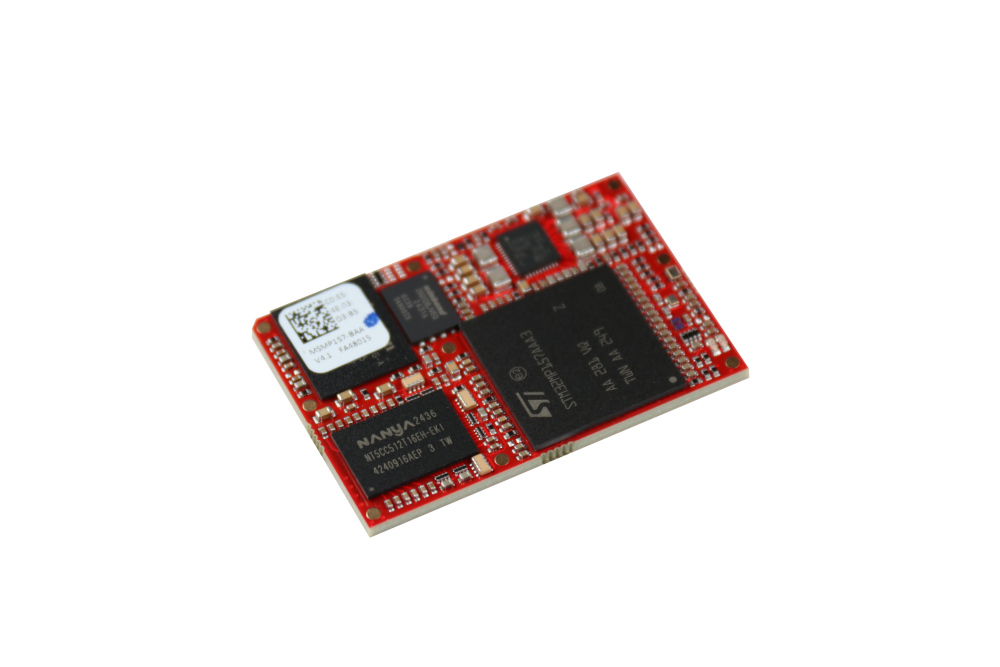

Product information "MSMP157-BAA"

STM32MP157AAA3, Cortex-A7, up to 800MHz
Cortex-M4, up to 209MHz
1GByte LPDDR3 RAM
4GB eMMC NAND Flash
128MBit SPI NOR Flash
10/100/1000MBit Ethernet
USB2.0 Host
USB2.0 OTG
2x CAN
UART
I2C
SPI
ADC
DAC
Parallel display port
Camera interface
compliant to the SGET OSM standard sizeM, 30x45mm 476 contacts
-30°C..+85°C industrial temperature

Accessory Items

MSRZFive-A0A

Single core RISC-V, up to 1GHz 512MB DDR4 RAM 128MBit SPI NOR Flash dual 10/100/1000MBit Ethernet USB2.0 Host/OTG 2x CAN UART, I2C, SPI ADC compliant to the SGET OSM standard size S, 30x30mm², pin count: 332 0°C..+70°C commercial temperature range -40°C..+85°C industrial temperature range

€46.00*

MSMP151-A0C

STM32MP151AAA3512MB LPDDR3 RAMno eMMC NAND Flash512MBit SPI NOR-25°C...+85°C

€42.00*

MSMP1EVK

MSMP1EVK baseboardFeaturing MSMP157-AAA STM32MP157AAA3 1GB LPDDR3 RAM 4GB eMMC NAND Flash 128MBit SPI NOR - 25°C...+85°C MSMP1EVK baseboardFeaturing MSMP151-A0C STM32MP151AAA3 512MB LPDDR3 RAM no eMMC NAND Flash 512MBit SPI NOR -25°C...+85°C

Variants from €314.00*

€330.00*

Details
