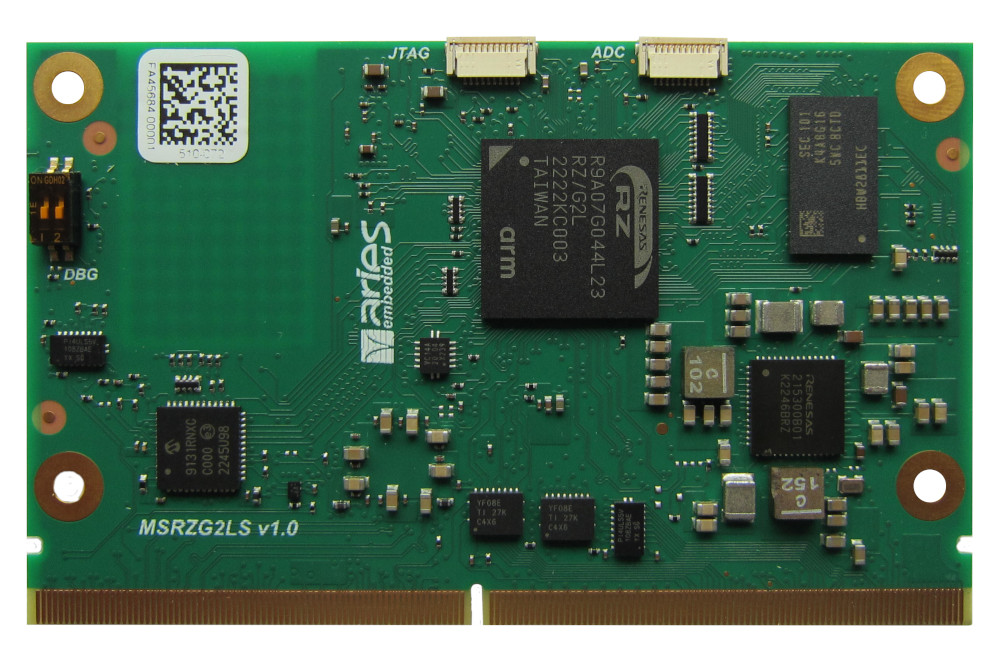

CPU- Renesas RZ/G2L R9A07G044L23GBG#BC0- Dual Cortex-A55, up to 1.2GHz - Single Cortex-M33, up to 200 MHz - 3D Graphics engine (Arm Mali-G31) - Video Codec (H.264) Memory- 1GB DDR4 RAM - 128MBit SPI NOR - 4GB eMMC NAND Flash Connectivity- dual 10/100/1000MBit Ethernet with PHY - USB2.0 Host/OTG - 2x CAN - UART - I2C- SPI - ADC Camera/Display support- Camera interface MIPI-CSI - Display interface MIPI-DSI compliant to the SGET SMARC 2.1 standard commercial temperature range (0°C...+70°C)
Single core RISC-V, up to 1GHz
512MB DDR4 RAM
128MBit SPI NOR Flash
dual 10/100/1000MBit Ethernet
USB2.0 Host/OTG
2x CAN
UART, I2C, SPI
ADC
compliant to the SGET OSM standard
size S, 30x30mm²,
pin count: 332
0°C..+70°C commercial temperature range
-40°C..+85°C industrial temperature range

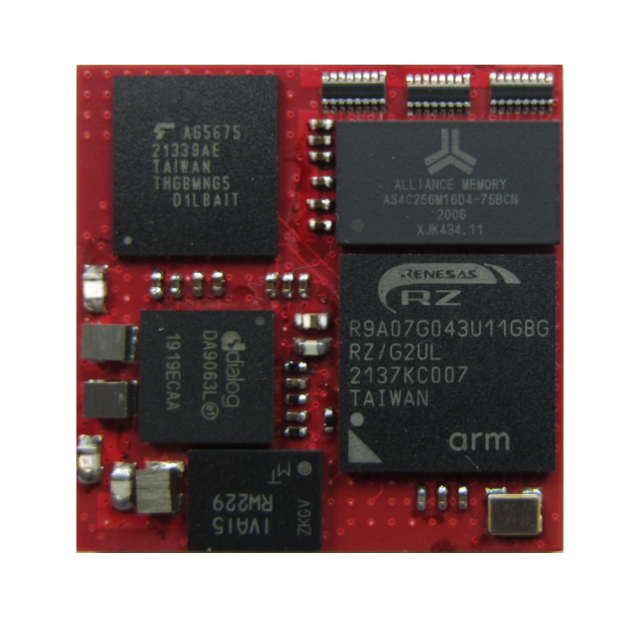

Renesas RZ/G2UL R9A07G043U11GBG, Single Cortex-A55, up to 1GHz
Cortex-M33, up to 200MHz
512MB DDR4 RAM128MBit SPI NOR Flash
no NAND Flash
dual 10/100/1000MBit Ethernet
USB2.0 Host/OTG
2x CAN
UART, I2C, SPI
ADC
parallel display interface
MIPI-CSI camera interface
compliant to the SGET OSM standard
size S, 30x30mm²
pin count: 332
0°C..+70°C commercial temperature range
-40°C..+85°C industrial temperature range

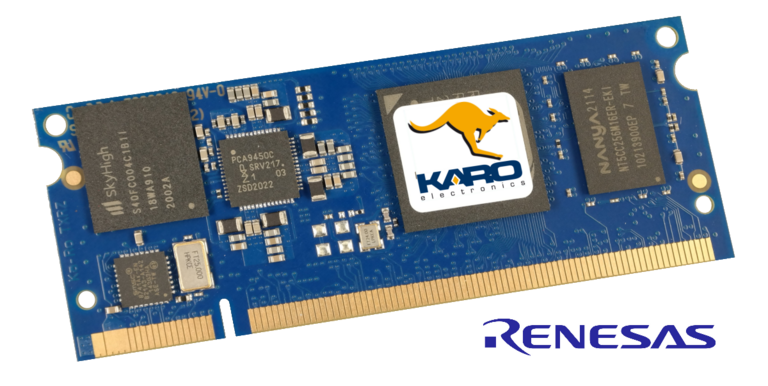

TXRZ System on Module
Dual 1.2 GHz ARM Cortex -A55 based RENESAS RZ/G2L
1GB DDR3L SDRAM
4GB eMMC
10/100Mbps Ethernet
RGMII Ethernet
2x USB
4x UART, 4x I²C, 3x SPI
2x CAN
MIPI-CSI camera interface
Power Supply 3.3V to 5 V
26 mm SO-Dimm
-40°C...+85°C
