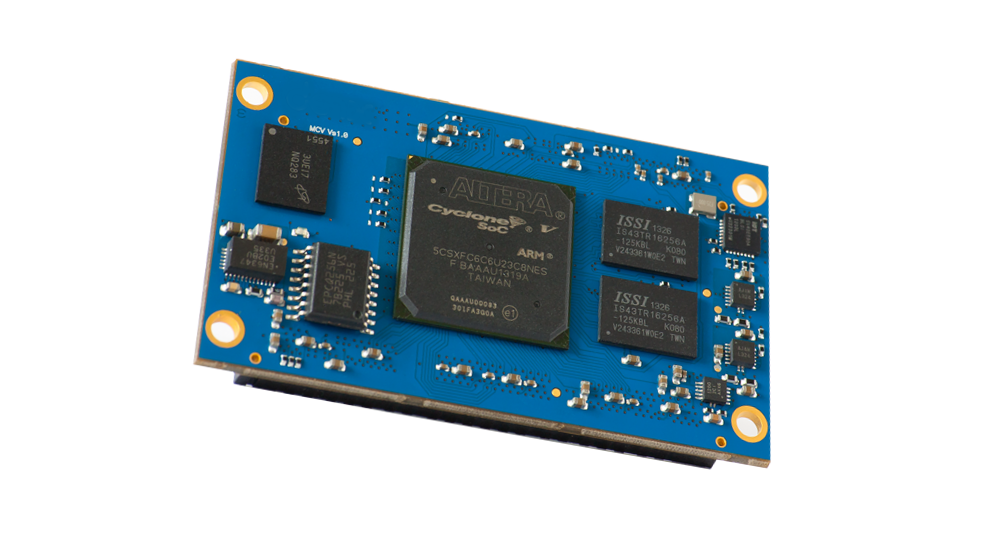

5CSEBA2U23C8N  Altera SoC FPGA Dual CortexA9, 600MHz 4GByte eMMC Flash 1GByte DDR3 SDRAM 0°C...+70°C 360 pins on 2xQSH connectors 42x74 mm

5CSEBA6U23C7N   Altera SoC FPGA Dual CortexA9  800MHz 4GByte eMMC Flash 1GByte DDR3 SDRAM 0°C...+70°C 360 pins on 2xQSH connectors 42x74 mm

5CSXFC2C6U23C7N Altera SoC FPGA Dual CortexA9  800MHz 4GByte eMMC Flash 1GByte DDR3 SDRAM PCIe 0°C...+70°C 360 pins on 2xQSH connectors 42x74 mm

5CSXFC6C6U23C7N Altera SoC FPGA Dual CortexA9  800MHz 4GByte eMMC Flash 1GByte DDR3 SDRAM 0°C...+70°C 360 pins on 2xQSH connectors 42x74 mm

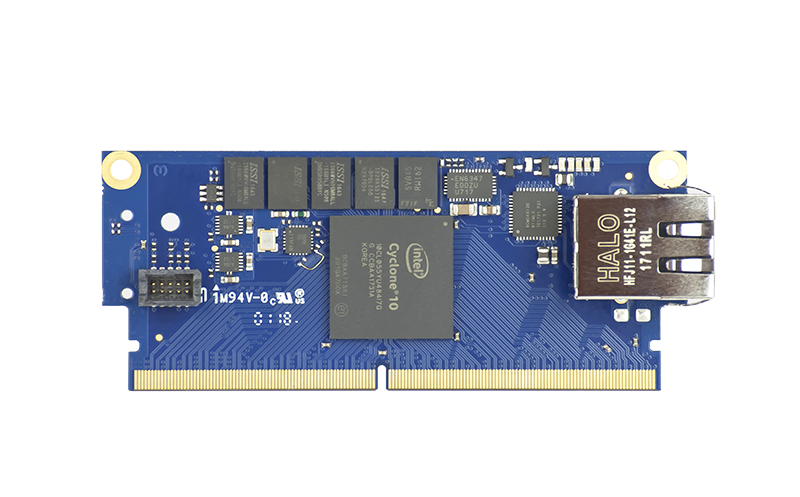

10CL055YU484I7G Cyclone 10 FPGA, 55KLE 2x128MBit HyperRAM 1GBit NVRAM Configuration device 256 Mbit Gigabit Ethernet Phy & connector 221 FPGA Pins

10CL055YU484I7G Cyclone 10 FPGA, 55KLE 512Mbit SDRAM Configuration device 256 Mbit Gigabit Ethernet Phy & connector 221 FPGA Pins

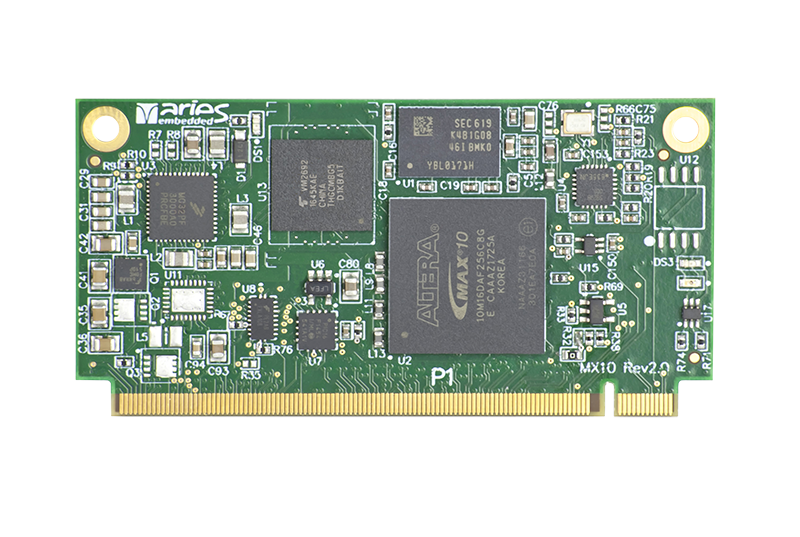

MAX 10 FPGA in F256 package module supports: 10M04DC programmable clock generator (25MHz XO) 100 FPGA GPIO pins, including 13 LVDS transmitters and 16 receivers programmable high-efficient PMIC, FPGA IO voltages are configurable Li-Ion charger (LTC4155) Temperature range: 0oC...+70oC Size: 70mm x 35mm

MAX 10 FPGA in F256 package module supports: 10M16DA 1 x ADC 4 GB e.MMC 128 MB DDR3 DRAM programmable clock generator (25MHz XO) and PLL (IDT5P49V5923) 100 FPGA GPIO pins, including 13 LVDS transmitters and 16 receivers programmable high-efficient PMIC, FPGA IO voltages are configurable Temperature range: 0oC...+70oC Size: 70mm x 35mm

MAX 10 FPGA in F256 package module supports: 10M08DA 1 x ADC programmable clock generator (25MHz XO) 100 FPGA GPIO pins, including 13 LVDS transmitters and 16 receivers programmable high-efficient PMIC, FPGA IO voltages are configurable Temperature range: 0oC...+70oC Size: 70mm x 35mm

MAX 10 FPGA in F256 package module supports: 10M50DA 2 x ADC 4 MB SPI NOR 4 GB e.MMC 128 MB DDR3 DRAM programmable clock generator (25MHz XO) and PLL (IDT5P49V5923) 100 FPGA GPIO pins, including 13 LVDS transmitters and 16 receivers RTC (MPC794xx) with battery backup programmable high-efficient PMIC, FPGA IO voltages are configurable Li-Ion charger (LTC4155) Temperature range: 0oC...+70oC Size: 70mm x 35mm

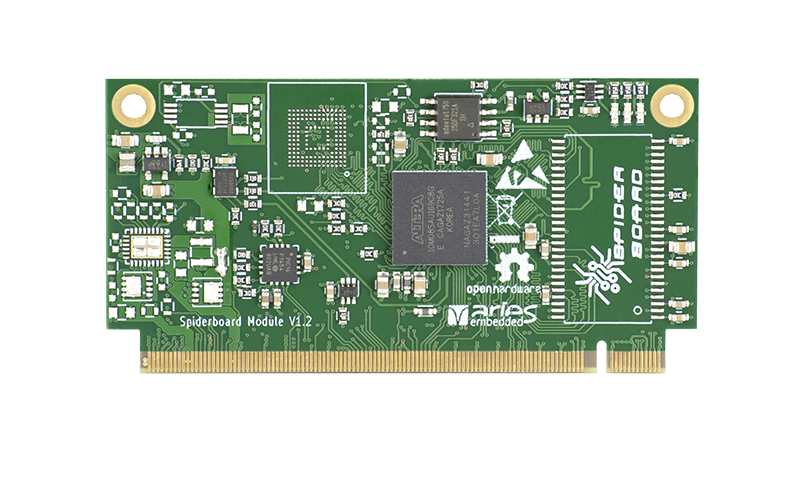

The SpiderSoM-L provides 10M02SC MAX10 FPGA 25MHz clock 130 GPIOs, 3,3V I/O voltage The SpiderSoM is a programmable, non-volatile solution based on Intel® MAX®10 FPGA, which enables it to deliver full-featured FPGA capabilities. The SpiderSoM can be used with the standard baseboard (SpiderBase) as a complete building block or can be plugged into existing designs and products as  functional part. It connects to its baseboard via a 230pins MXM2 connector and provides the ideal solution support for various soft-core CPUs, video-processing algorithms, etc.     The SpiderSoM is available as a low cost and extremely flexible platform which enables user to setup a running system according to the required specification in a very short time. SoM is based on the free and open design concept: KiCAD design files are available under CERN OHL v1.2.   USB Firmware for MX10 and SpiderSoM MX10 and SpiderSoM modules provide a USB device interface implemented with PIC16F1454 microcontroller (MCU). On the SoM side the MCU is connected to three interfaces: serial (if the other side is implemented inside the FPGA), I2C bus (connected to the module PMIC, charge controller, RTC and FPGA), and FPGA JTAG programming interface. On the host side Linux is supported as Operating System, currently Ubuntu16.04LTS is marked as a reference base. MAX 10 single voltage supply FPGA in U169 package module supports MAX 10 FPGAs from 10M02SC to 10M16SA optional 4 MiB SPI NOR optional 4 GiB e.MMC optional 8 MiB SDRAM FPGA GPIO pins optional RTC with battery backup optional Li-Ion/Li-Pol charger Size: 70mm x 35mm OS Support: FreeRTOSTM The SpiderSoM promotes the free and open design concept: KiCAD design files are available under CERN OHL v1.2. While the MX10 SoM targets the area of professional electronic designs in commercial applications the SpiderSoM was designed to be used in IoT Maker applications. Spider SoM configurations:     SpiderSoM-L SpiderSoM-S     FPGA 10M02SC MAX10 10M08SA MAX10     ADC - 1     Clock 25 MHz XO 25 MHz XO     DDR3 RAM - -     SPI NOR - 4MiB     e.MMC NAND Flash - -     RTC - -     GPIO/ LVDS TX/Rx 130/ 13/ 16 130/ 13/ 16     Li-Ion charger - -     I/O Voltage programmable 3.3V Temperature range 0oC ... +70oC 0oC ... +70oC     Size 70mm x 35mm 70mm x 35mm

The SpiderSoM-S provides 10M08SA MAX10 FPGA 1 ADC 25MHz clock 4MiB SPI NOR 130 GPIOs, 3,3V I/O voltage The SpiderSoM is a programmable, non-volatile solution based on Intel® MAX®10 FPGA, which enables it to deliver full-featured FPGA capabilities. The SpiderSoM can be used with the standard baseboard (SpiderBase) as a complete building block or can be plugged into existing designs and products as  functional part. It connects to its baseboard via a 230pins MXM2 connector and provides the ideal solution support for various soft-core CPUs, video-processing algorithms, etc.     The SpiderSoM is available as a low cost and extremely flexible platform which enables user to setup a running system according to the required specification in a very short time. SoM is based on the free and open design concept: KiCAD design files are available under CERN OHL v1.2.   USB Firmware for MX10 and SpiderSoM MX10 and SpiderSoM modules provide a USB device interface implemented with PIC16F1454 microcontroller (MCU). On the SoM side the MCU is connected to three interfaces: serial (if the other side is implemented inside the FPGA), I2C bus (connected to the module PMIC, charge controller, RTC and FPGA), and FPGA JTAG programming interface. On the host side Linux is supported as Operating System, currently Ubuntu16.04LTS is marked as a reference base. MAX 10 single voltage supply FPGA in U169 package module supports MAX 10 FPGAs from 10M02SC to 10M16SA optional 4 MiB SPI NOR optional 4 GiB e.MMC optional 8 MiB SDRAM FPGA GPIO pins optional RTC with battery backup optional Li-Ion/Li-Pol charger Size: 70mm x 35mm OS Support: FreeRTOSTM The SpiderSoM promotes the free and open design concept: KiCAD design files are available under CERN OHL v1.2. While the MX10 SoM targets the area of professional electronic designs in commercial applications the SpiderSoM was designed to be used in IoT Maker applications. Spider SoM configurations:     SpiderSoM-L SpiderSoM-S     FPGA 10M02SC MAX10 10M08SA MAX10     ADC - 1     Clock 25 MHz XO 25 MHz XO     DDR3 RAM - -     SPI NOR - 4MiB     e.MMC NAND Flash - -     RTC - -     GPIO/ LVDS TX/Rx 130/ 13/ 16 130/ 13/ 16     Li-Ion charger - -     I/O Voltage programmable 3.3V Temperature range 0oC ... +70oC 0oC ... +70oC     Size 70mm x 35mm 70mm x 35mm
