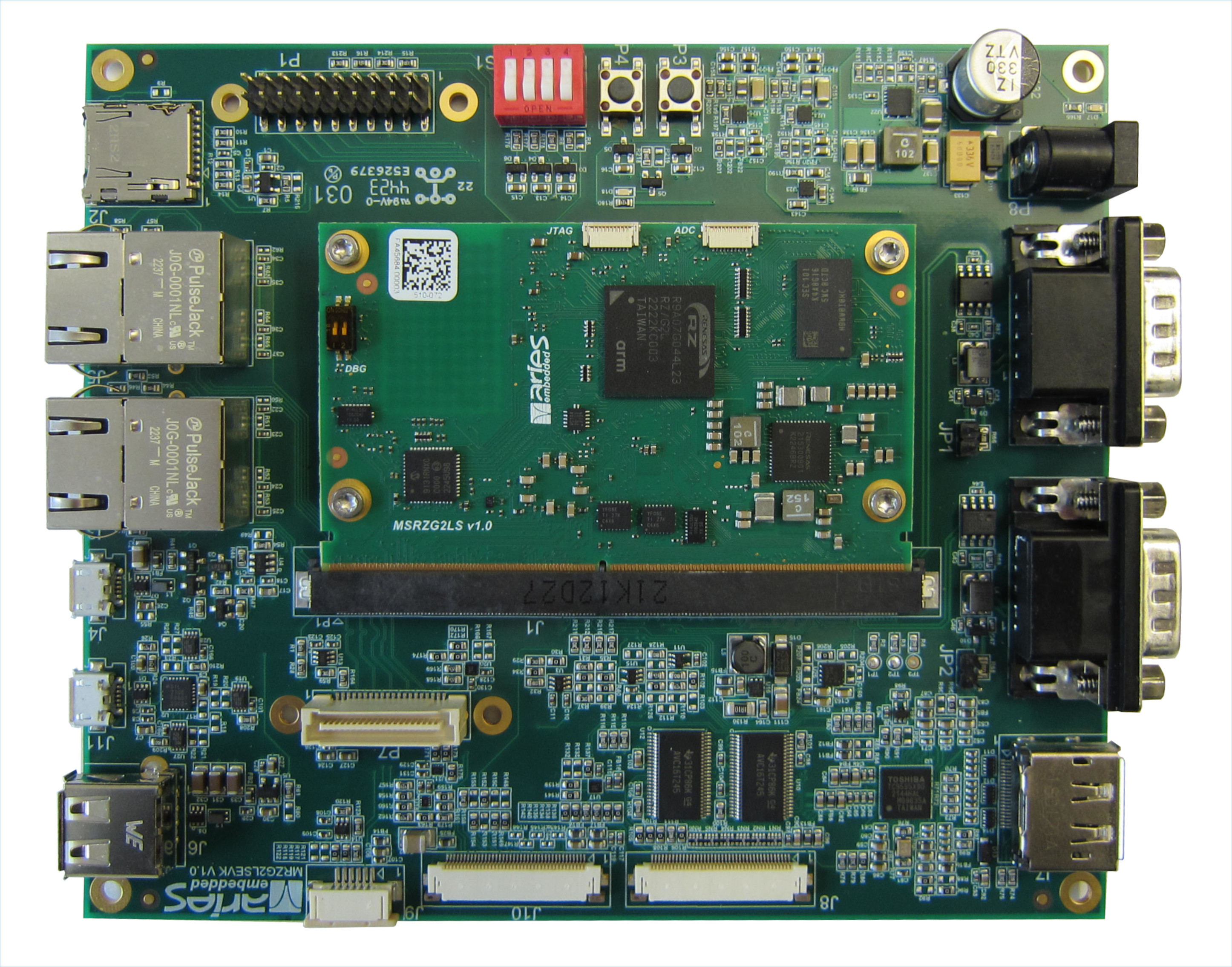

The MRZG2LSEVK is the ideal platform for a quick and smooth startup with the new architecture. Due to its functionality it supports developers for a quick startup, helps developing software and can also be used as a platform for rapid prototyping. The baseboard supports both the MRZG2LS and MRZV2LS System-on-Modules which are compliant to the SMARC 2.1 specification.Features:
MRZG2LS-AAB
SMARC SoM featuring- Renesas RZ/G2L, dual-core, R9A07G044L23GBG#BC0, up to 1,2GHz- 1GB DDR4 RAM
- 4GB eMMC
- 128MBit SPI-NOR
- 2x KSZ9131 PHY
- temperature range -25°...+85°C
2x Ethernet on RJ45 2x CAN on DSub9 MIPI-DSI via converter on HDMI connector MIPI-CSI on connector USB2.0 OTG on USB micro AB USB2.0 Host on USB A console via converter on USB micro AB UART, I2C, SPI on pin header SD-card on µSD-card slot

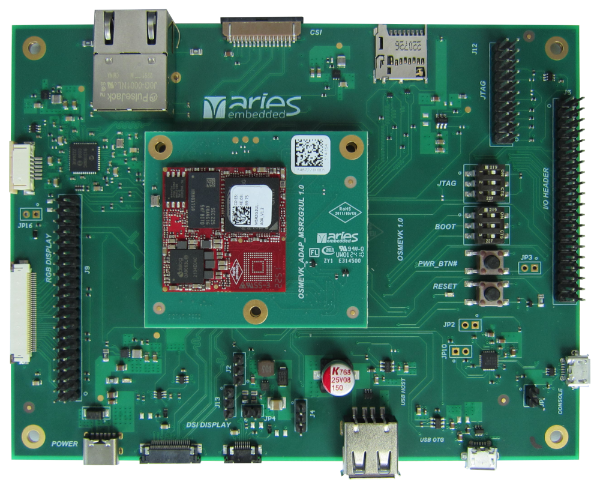

MSRZG2ULEVK-A0A featuring MSRZG2UL-A0A SoM - Renesas RZ/G2UL R9A07G043U11GBG- 512MB DDR4 RAM- no eMMC NAND Flash- 128MBit SPI-NOR- -25°...+85°CEthernet on RJ45 connector USB Host on USB A connector USB OTG interface on USB microAB connector console interface on USB microAB connector UART on pin header CAN on pin header SPI on pin header I2C on pin header GPIO on pin header JTAG on pin header
MSRZG2ULEVK-BAA featuring MSRZG2UL-BAA SoM - Renesas RZ/G2UL R9A07G043U11GBG- 1GB DDR4 RAM- 4GB eMMC NAND Flash- 128MBit SPI-NOR- -25°...+85°CEthernet on RJ45 connector USB Host on USB A connector USB OTG interface on USB microAB connector console interface on USB microAB connector UART on pin header CAN on pin header SPI on pin header I2C on pin header GPIO on pin header JTAG on pin header

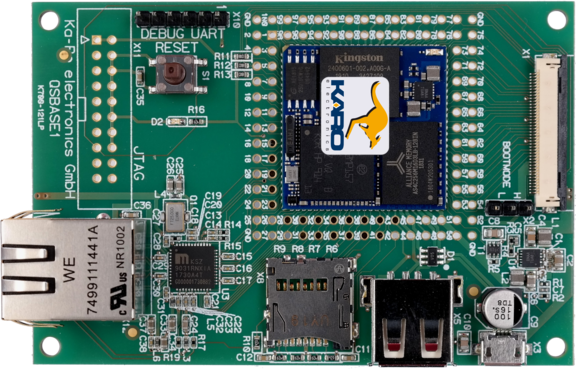

QSMP-1570 Computer on Module on QSBase1
Linux is pre-installed and ready for application development. Other features include:
2-layer PCB
QSCOM module: QSMP/157C/512S/4GF/E85
Gb Ethernet
RGB Display Connector
USB
SD-Card
TFT Display Connector
Debug UART
Dimensions 60mm x 90mm
QSMP-1570 Computor on Module:
Processor STM32MP157C
512 MB LPDDR3 RAM
4GB eMMC
Display-IF 24-bit RGB + 2-lane MIPI-DSI
Dimensions 27mm x 27mm x 2.3mm
-25°C...+85°C
Evaluation Kit QSBase2
Linux is pre-installed and ready for application development. Other features include:
4-layer PCB, single sided assembly
Gb Ethernet
MIPI Display and camera connector
USB power supply
4 port USB
Dimensions 56mm x 85mm
Computors on Module compatlibility:
QSMP-1570
Processor STM32MP157C
512 MB LPDDR3 RAM
4GB eMMC
Displayy-IF 24-bit RGB + 2-lane MIPI-DSI
Dimensions 27mm x 27mm x 2.3mm
-25°C...+85°C
QS8M-MQ00
Processor NXP i.MX8M Mini Quad 1,6GHz
1GB DDR3L RAM
4 GB eMMC
Displayy-IF MIPI
Dimensions 27mm x 27mm x 2.3mm
-25°C...+85°C
QS8M-ND00
ProcessOr NXP i.MX8M Nano Quad 1,4GHz
512 MB DDR3L RAM
4 GB eMMC
Displayy-IF MIPI
Dimensions 27mm x 27mm x 2.3mm
-25°C...+85°C
Evaluation Kit QSBase3
Linux is pre-installed and ready for application development. Other features include:
M.2/NGFF PCIe socket
Gb Ethernet
MIPI Display connector
2 MIPI camera connector
USB power supply
4 port USB 3.0 hub
Dimensions 56mm x 85mm
Computors on Module compatlibility:
QSXM-MM60
NXP i.MX 8M Mini 1,6GHz
2 GB LPDDR4 RAM
4 GB eMMC
Display-IF MIPI
Dimensions 29mm x 29mm x 2.6mm
-25°C...+85°C
QSXP-ML81
Processor NXP i.MX 8M Plus 1,6GHz
2 GB LPDDR4 RAM
8 GB eMMC
Display-IF MIPI
Dimensions 29mm x 29mm x 2.6mm
-30°C...+85°C

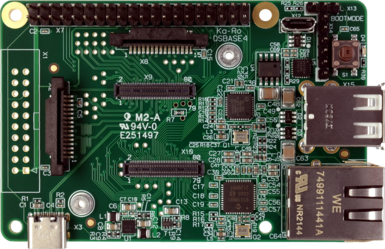

QSBase4
Available with any QS module
Optional shielding cabinet
2x 80 pin connectors
Easy to lock with screws
33 mm square, 2mm board-to-board spacing
8 mm mounted overall height including shielding cabinet
Linux is pre-installed and ready for application development. Other features include:
4-layer PCB single sided assembly
Gb Ethernet
MIPI Display Connector
2x port USB 2.0 hub
USB C power supply
Dimensions 56mm x 85mm
TX Evalkit
The TX6 Evaluation Kit combines the powerful and low-power ARM COMs with a simple baseboard that provides the most common interfaces for industrial products, including Dual Ethernet, Wi-Fi, Dual CAN, 8 UARTS, USB and an optional LCD. The kit is well-suited for applications in industrial automation, gateways and hubs, medical technology, energy and transportation.
Ethernet,
Dual CAN,
Dual USB,
Family LCD Support,
RTC with GoldCAP,
Up to 8 UARTs
2x RS485
3x RS232
3x TTL,
5VDC Power Supply
100mm x 45mm x 17mm
€179.00*
